The Prima AP Plug&Play cables for the AP bit amplifiers ensure maximum ease of installation for the Audison Prima system according to the “OEM Integrator” philosophy. For this purpose, cables with Plug&Play connections and foolproof have been built using the same materials employed to build the OEM wiring.

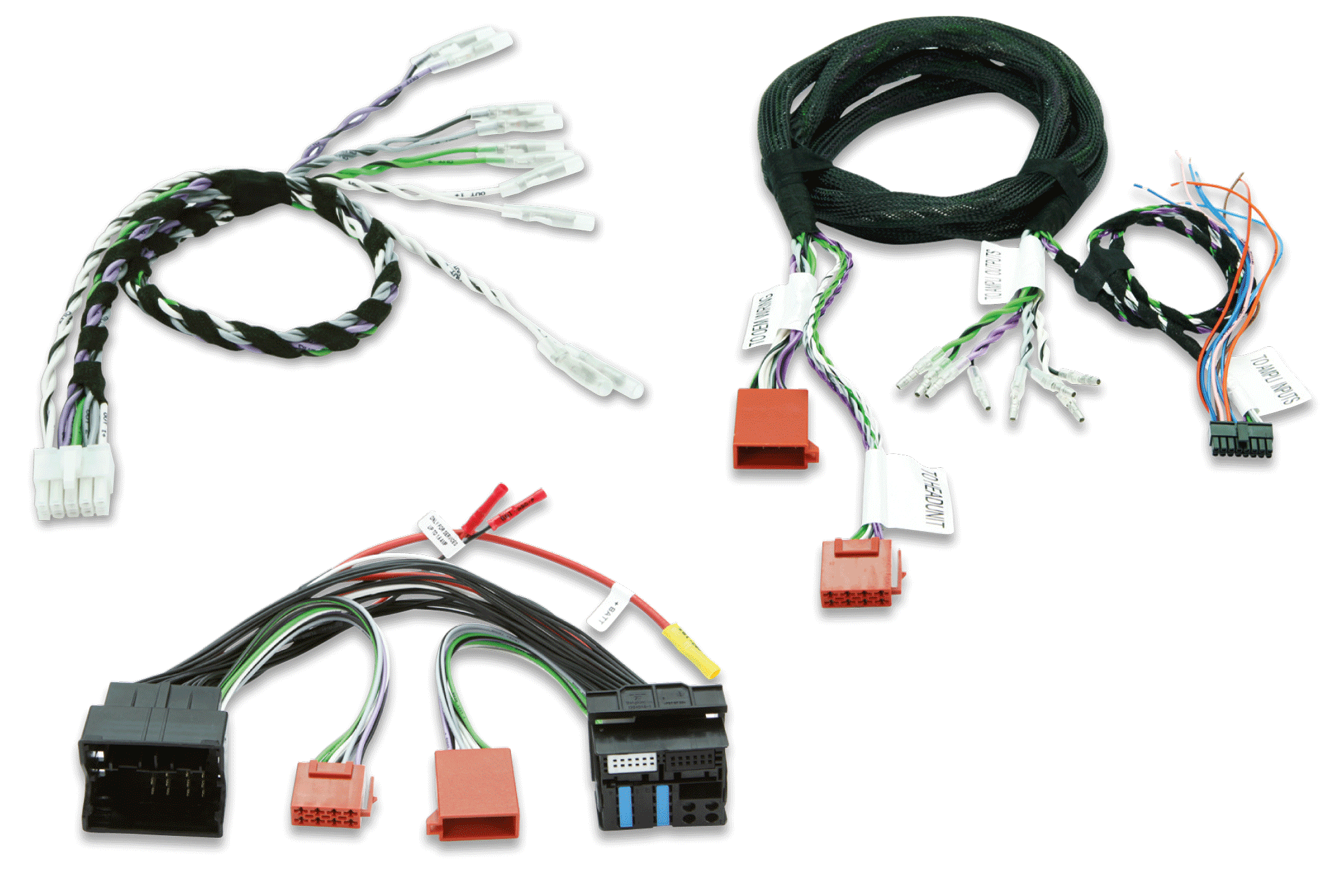

The solutions which Audison offers are: AP T-Harness “DCC”, AP Extension Cables and AP Speakers Output Cables.
Thanks to these three cable families, the AP bit amplifiers can be installed on a large number of vehicles with drastically reduced working time, and without the need to modify the factory wiring.
All cables have appropriate gauge size and are twisted to ensure maximum shielding effectiveness along the entire input/output line.

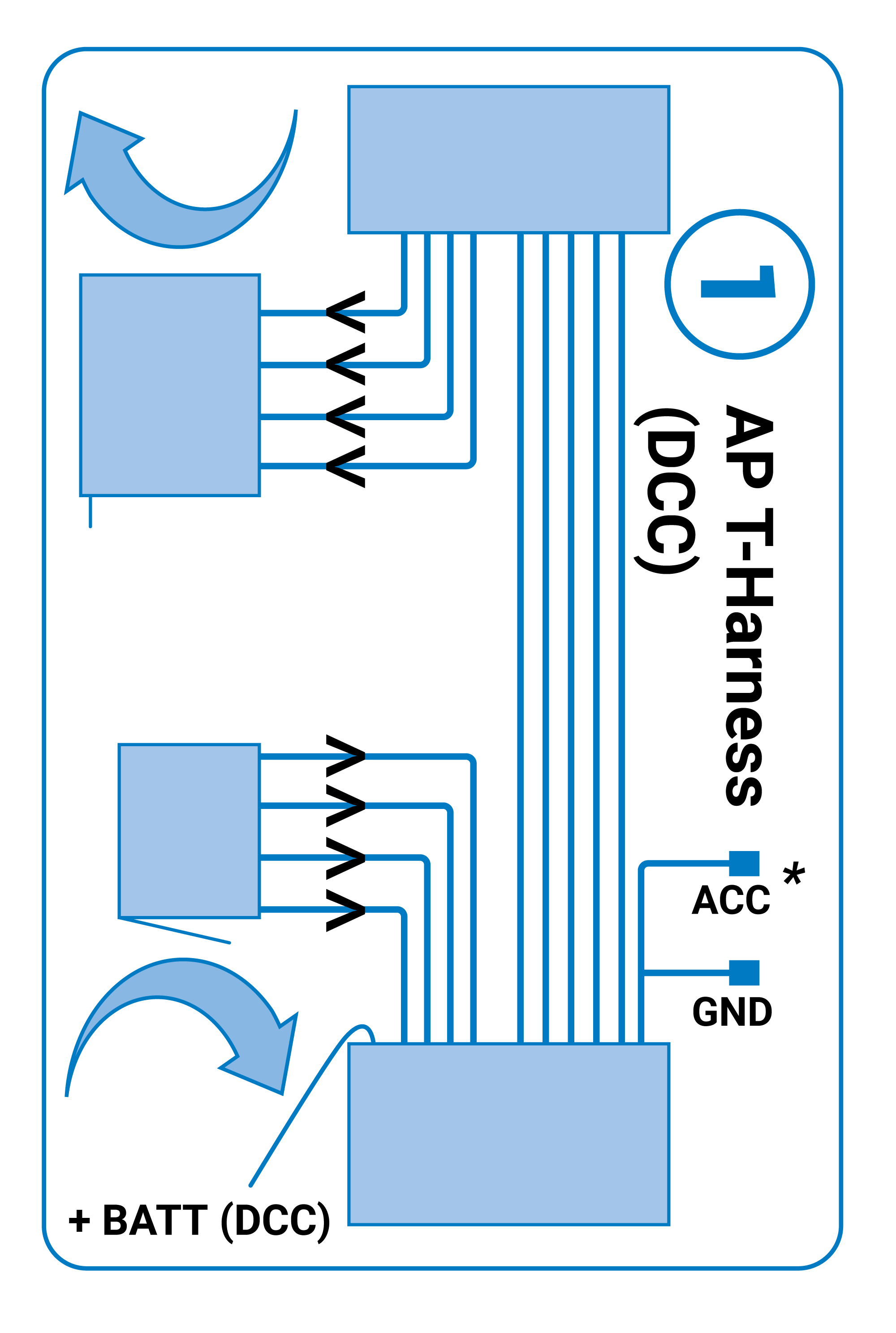

AP T-Harness “DCC”.
T-Harness “DCC” is the Plug&Play solution to integrate Audison Prima with the factory car audio system. The battery positive is taken from the head unit without the need of reaching the engine compartment thanks to the DCC* solution.
*The DCC solution, (Direct Cockpit Current) can be used combined with the AP bit amplifiers’ feature which controls the amplifier absorption peaks, protecting the car power supply system.
AP Extension cables.

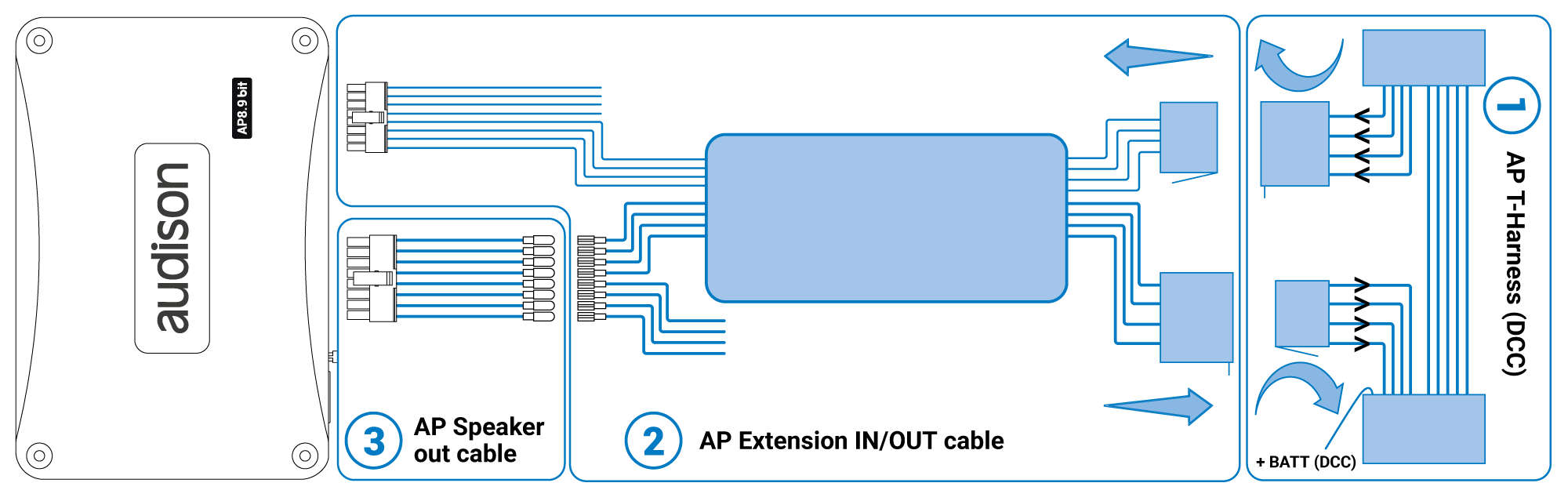

The Extension cable with Plug&Play connections allows total freedom in positioning the AP bit amplifiers. Two extension typologies are available: input only, to only send the audio signal coming from the head unit to the AP bit amplifiers, or input/output, transmit also the AP bit amplifiers’ output signal to the factory audio system. To do so, the AP Extension Cables IN/OUT needs to be installed together with the AP Speakers Output Cables (see following paragraph).
By use of the input/output extension, the installer is free to choose which configuration to adopt. Actually, thanks to the AP Extension cables, each single channel of the AP bit amplifier is sent to any of the speakers in the car, so the installer is free to carry out the desired configuration.
For example: standard front (2ch TW+WF), multi-amplified front (2ch TW + 2ch WF), multi-amplified front with 4 bridged channels (130W @ 4ohm) for the woofers
(2ch TW + 4ch bridge WF) and all the other possible combinations.
AP Speakers Output cables.
The AP Speakers Output cables are available in 3 versions: for AP8.9 bit, for AP5.9 bit and for AP4.9 bit. These cables are dedicated to the connection of the AP bit amplifiers with the input/output Extension cable. The Plug&Play connectors with circle terminals are numbered (“CH1 +”, CH1 -“, etc…) for a foolproof connection. There is no need to solder any cable.

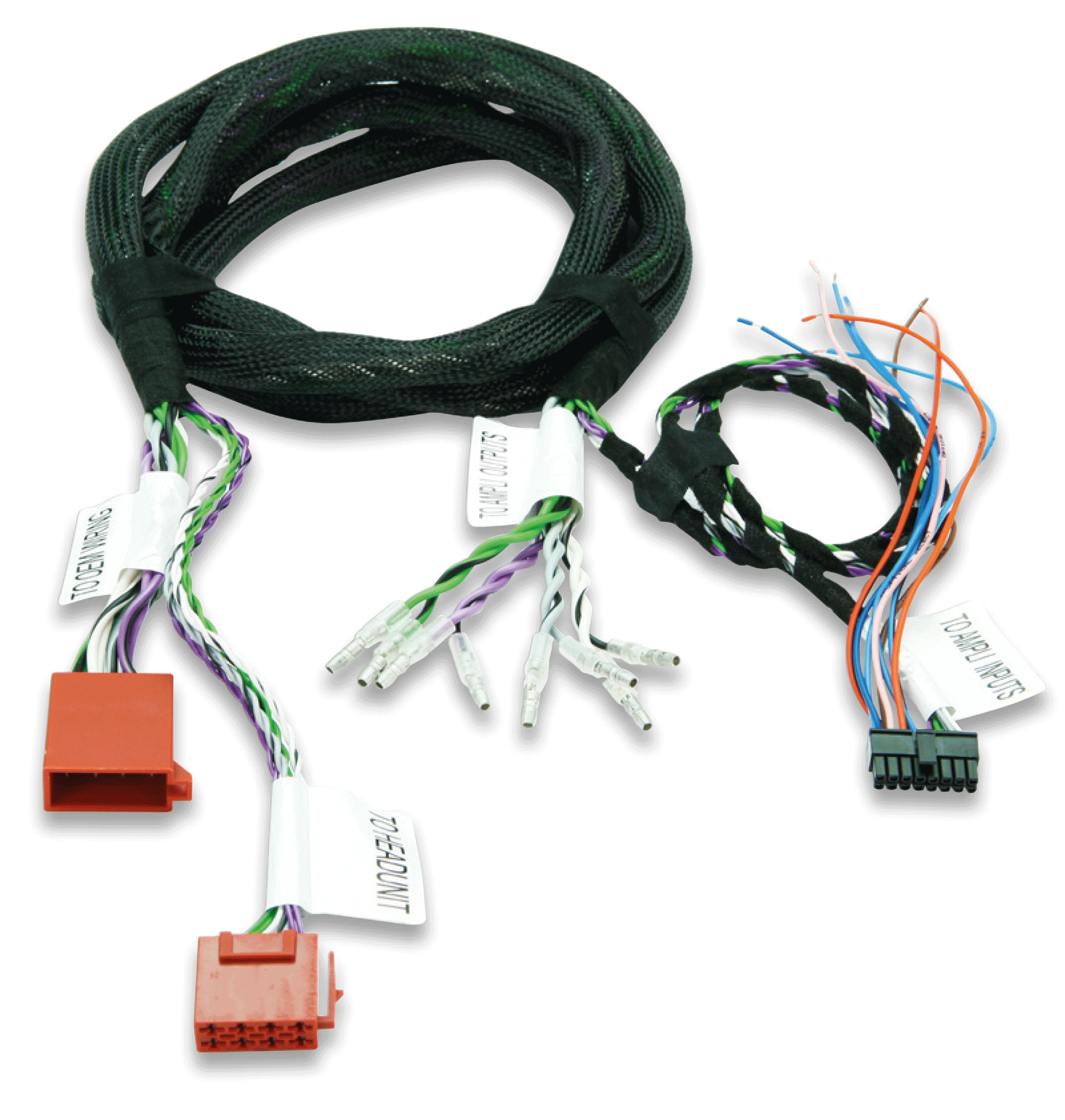

AP-Extension cable In/OUT
1. Built with twisted cables, for effective elimination of disturbances.
2. Three different lengths (1,6 mt, 2,6 mt and 5,6 mt) suitable for any vehicle.
3. Cut-proof protective shield.
4. High flexibility for maximum ease of installation.
5. In/Out double connector, to also receive the amplified signal of the AP bit amplifiers.
6. No soldering required.
|
ITEM |
DESCRIPTION |
|
AP 160P&P I/O |
ISO EXTENTION IN/OUT 160 cm |
|
AP 260P&P I/O |
ISO EXTENTION IN/OUT 260 cm |
|
AP 560P&P I/O |
ISO EXTENTION IN/OUT 560 cm |

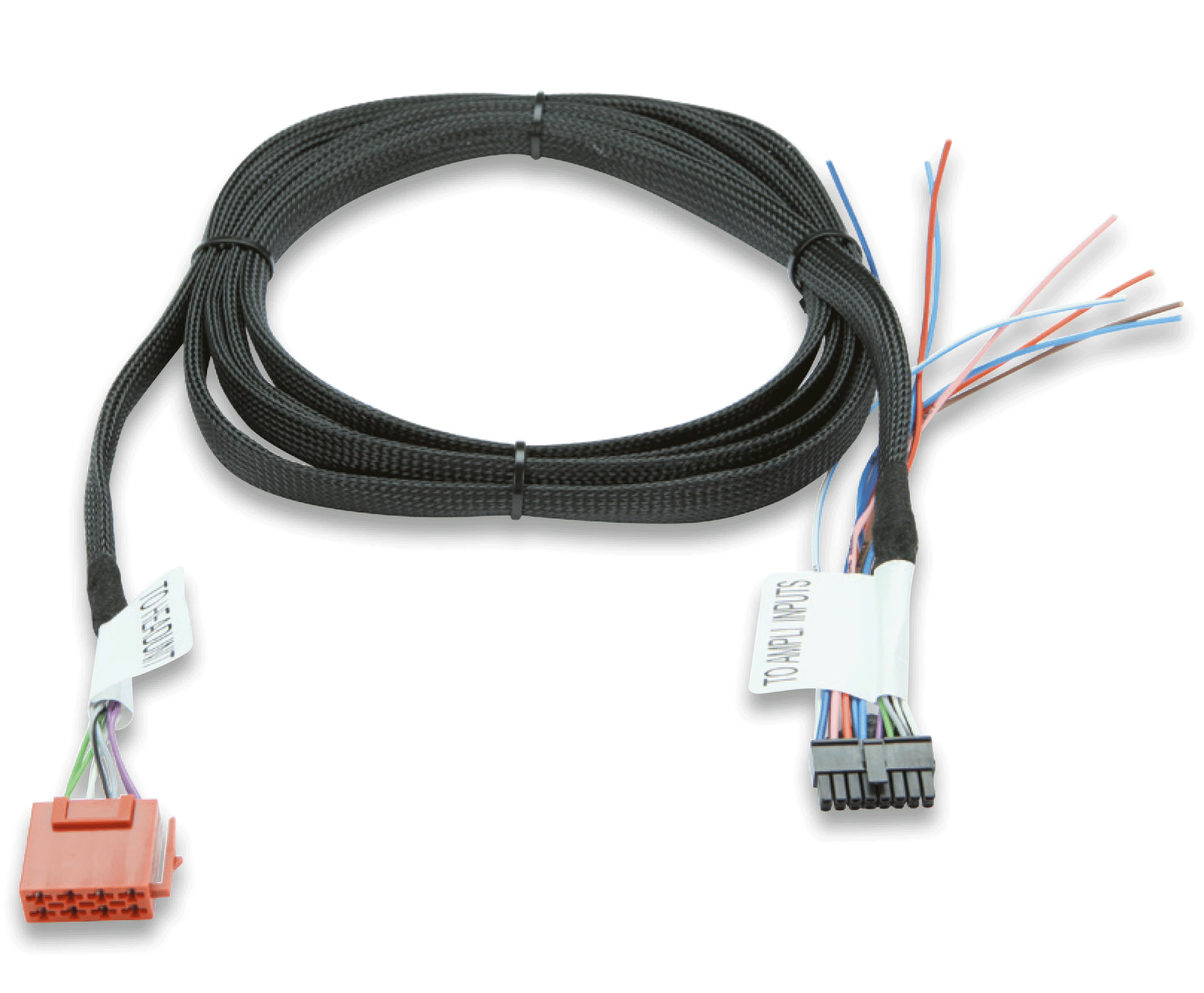

AP Extension cable INPUT
1. Built with twisted cables, for effective elimination of disturbances.
2.Three different lengths (1,6 mt, 2,6 mt and 5,6 mt) suitable for any vehicle.
3. Cut-proof protective shield.
4. High flexibility for maximum ease of installation.
5. No soldering required.
|
ITEM |
DESCRIPTION |
|
AP 160P&P IN |
ISO EXTENTION INPUT 160 cm |
|
AP 260P&P IN |
ISO EXTENTION INPUT 260 cm |
|
AP 560P&P IN |
ISO EXTENTION INPUT 560 cm |

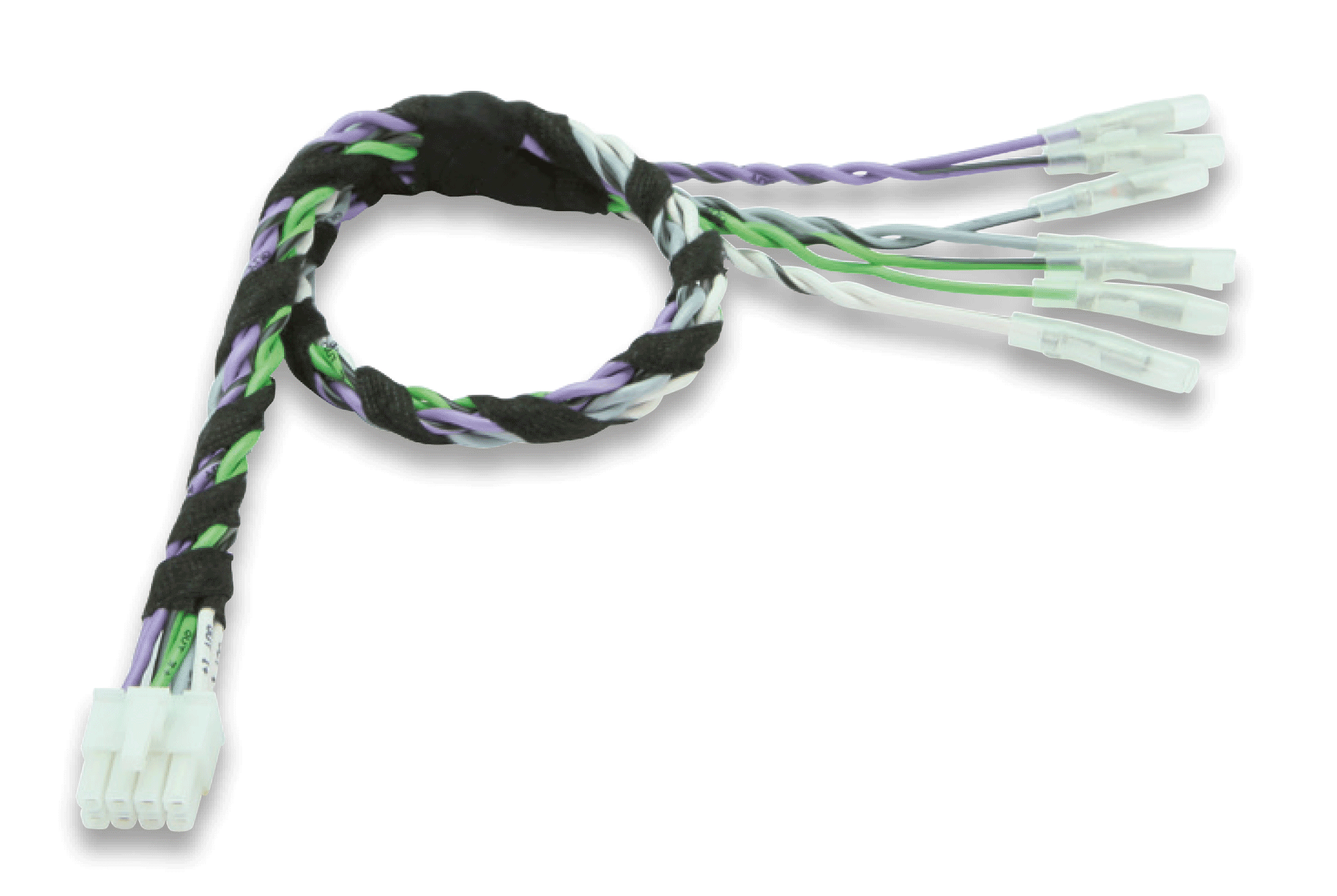

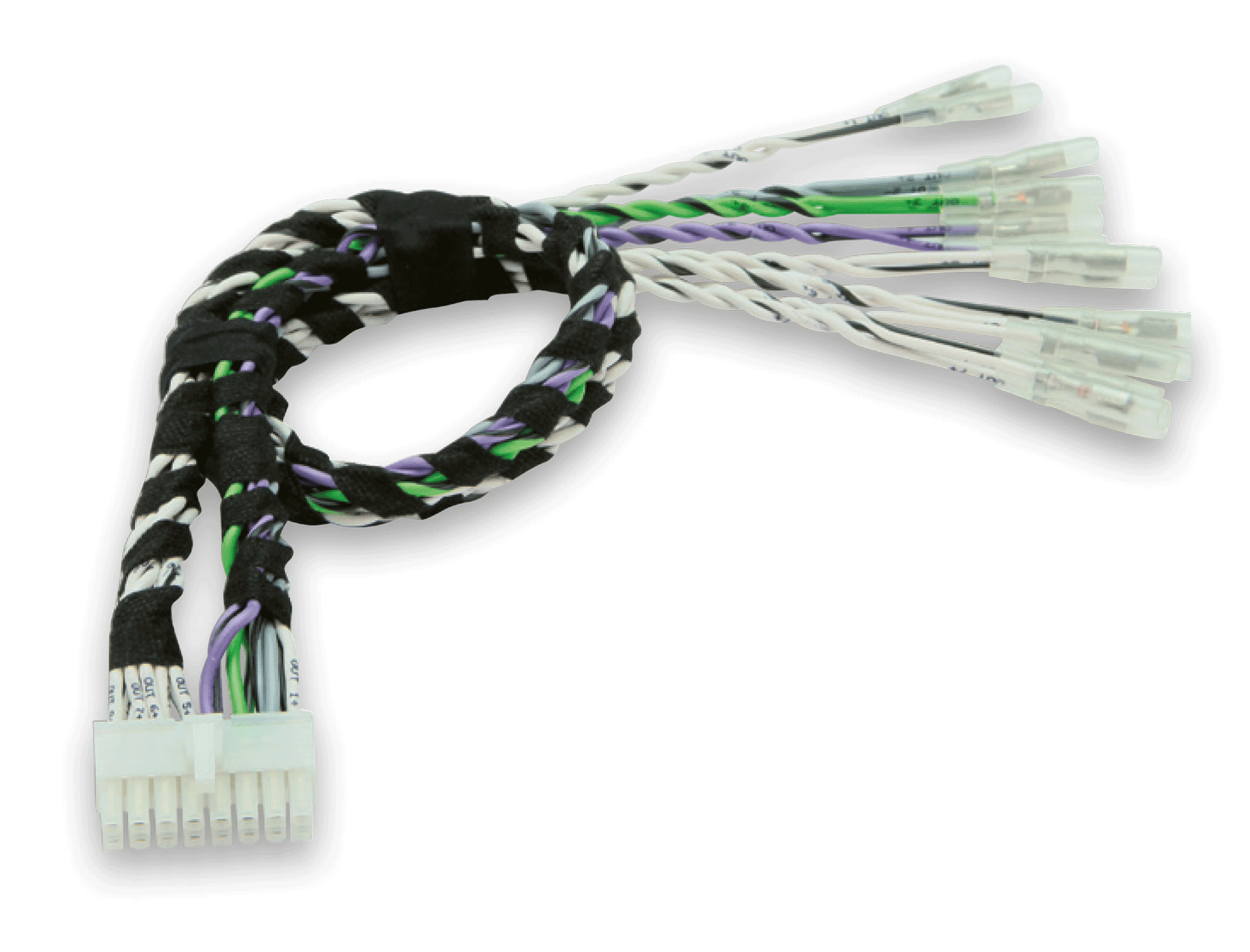

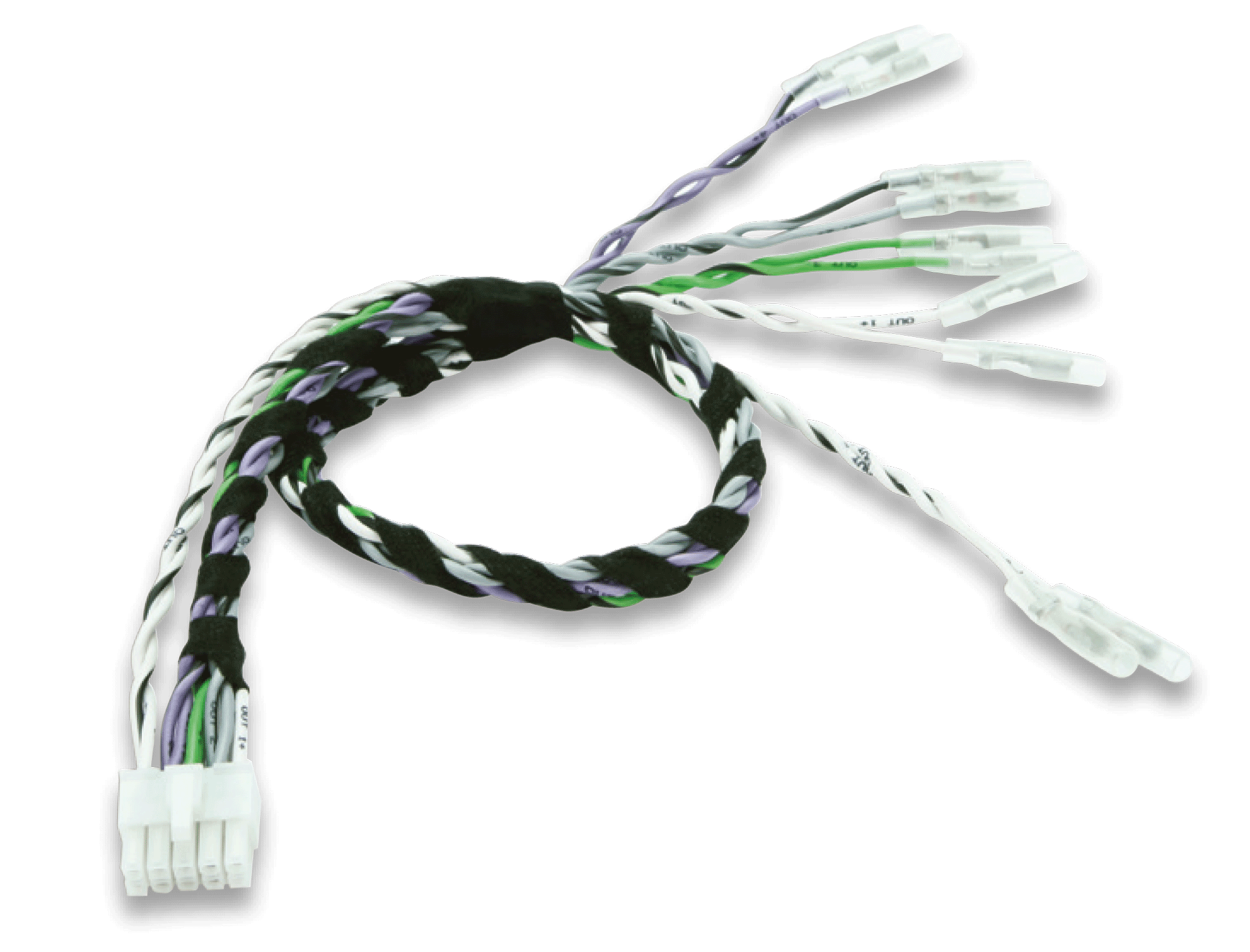

AP Speaker output cables
1. Built with twisted cables, for effective elimination of disturbances.
2. 3 specific models dedicated to AP8.9 bit, AP5.9 bit and AP4.9 bit amplifiers respectively.
3. Round terminals for maximum ease of connection.
4. Multi-amplification possible with all configurations*.
5. Cables are numbered for foolproof connection to the Extension cable.
6. No soldering required.
*See connection diagrams
|
ITEM |
DESCRIPTION |
|
AP SPK OUT 4.9 |
4CH OUTS CIRC. TERMINALS FEMALE |
|
ITEM |
DESCRIPTION |
|
AP SPK OUT 5.9 |
5CH OUTS CIRC. TERMINALS FEMALE |
|
ITEM |
DESCRIPTION |
|
AP SPK OUT 8.9 |
8CH OUTS CIRC. TERMINALS FEMALE |

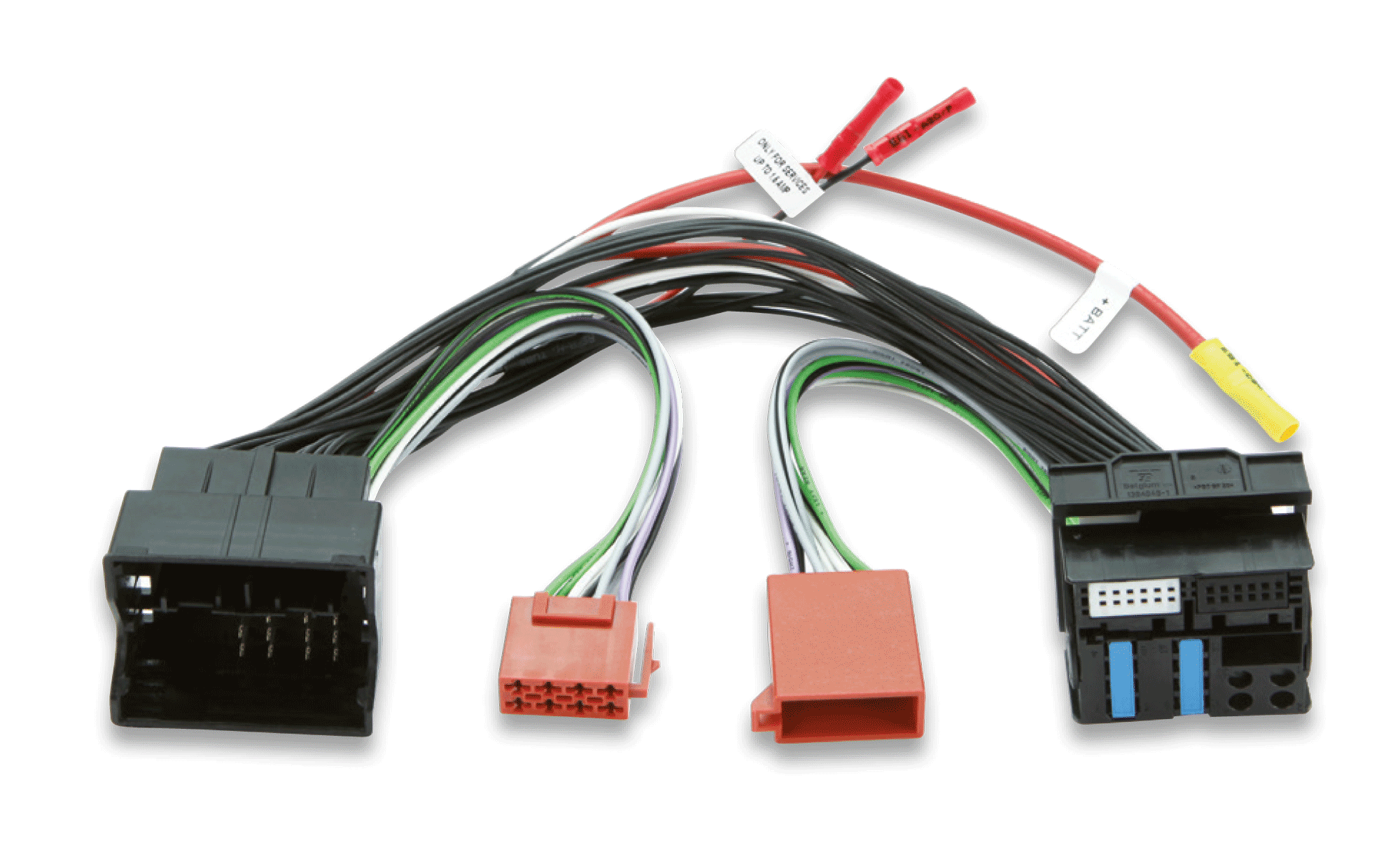

AP T-Harness
1. Designed specifically for your vehicle, for maximum OEM integration.
2. Connection to the AP Extension cable through ISO connectors.
3 Possibility to supply power to the amplifier via the direct cockpit current system, without the need of routing the cable through the engine compartment (with Audison Prima DCC solution).
4 ACC wire to re-launch ignition key signal to turn on / off an external device*.
*In those vehicles featuring ignition key connection wire (ACC wire), see compatibility list.
|
ITEM |
DESCRIPTION |
|
AP T-H BMW01 |
PRIMA T-HARNESS BMW |
|
AP T-H AVS01 |
PRIMA T-HARNESS AUDI, VW 40PIN |
|
AP T-H AVS02 |
PRIMA T-HARNESS AUDI, VW 52PIN |
|
AP T-H TOL01 |
PRIMA T-HARNESS TOYOTA, LEXUS |
|
AP T-H HON01 |
PRIMA T-HARNESS HONDA |
|
AP T-H ISO01 |
PRIMA T-HARNESS ISO |
|
AP T-H MBP01 |
PRIMA T-HARNESS MB, PORSCHE |
|
AP T-H INI01 |
PRIMA T-HARNESS NISSAN/INFINITI |
|
AP T-H CHR01 |
PRIMA T-HARNESS CHRYSLER 2007 -> |
|
AP T-H FCA01 |
PRIMA T-HARNESS FIAT/CHRYSLER |
|
AP T-H GMN01 |
PRIMA T-HARNESS GM 2009 -> |
|
AP T-H FRD01 |
PRIMA T-HARNESS FORD 2002 -> |
|
AP T-H FRD02 |
PRIMA T-HARNESS FORD 2010 -> |
|
AP T-H GMO01 |
PRIMA T-HARNESS GM 2006 -> |
|
AP T-H MAZ01 |
PRIMA T-HARNESS MAZDA 2001-> |
