AD LINK-OUT

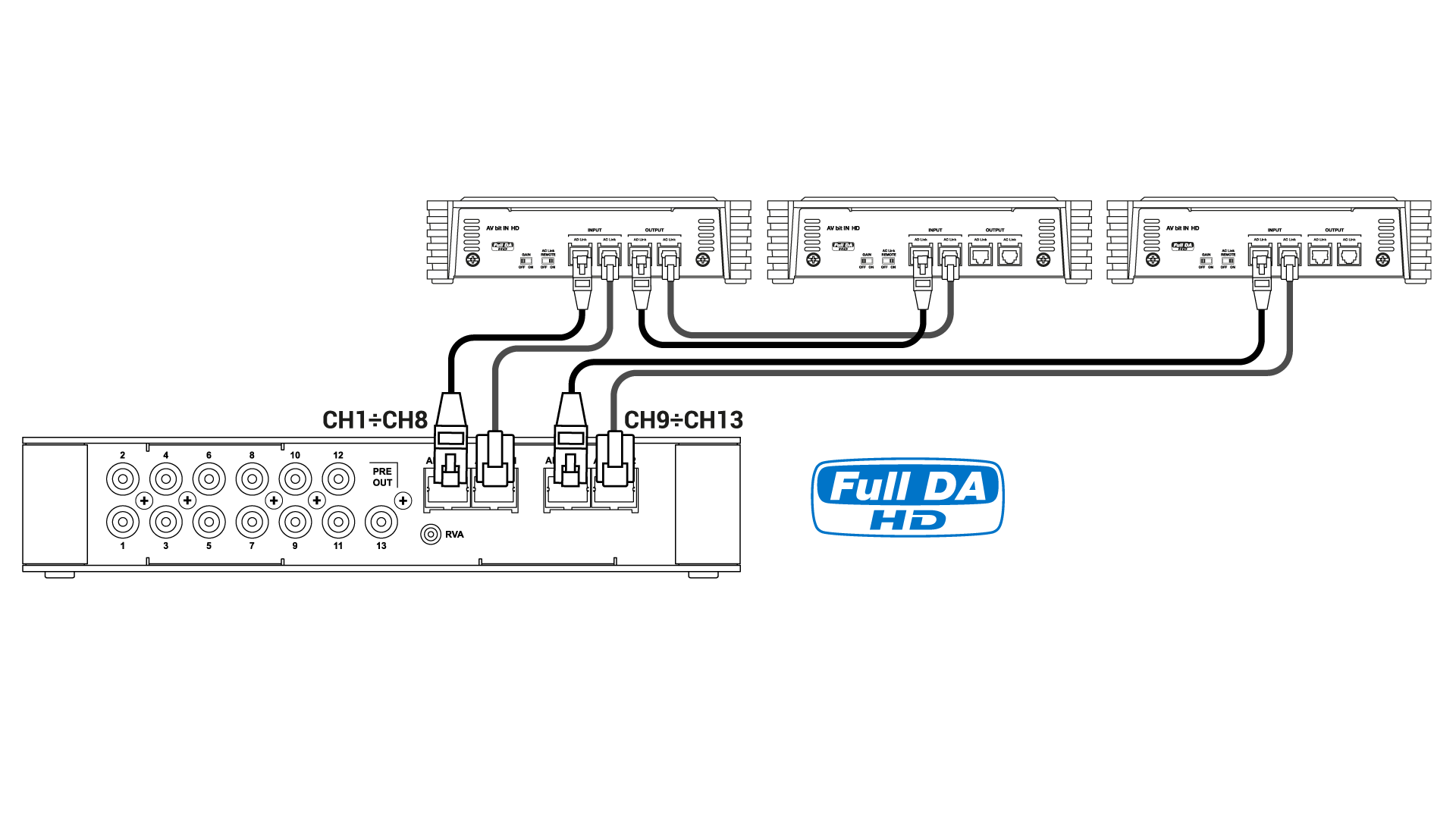

5.7.1. OUTPUT TO AN AMPLIFIERS SYSTEM PROVIDED WITH AD LINK AND AC LINK CONNECTION (THESIS TH / AV AMPLIFIERS)
(see section 7.2.2.12 - 7.2.3.9 - 7.2.4.5)

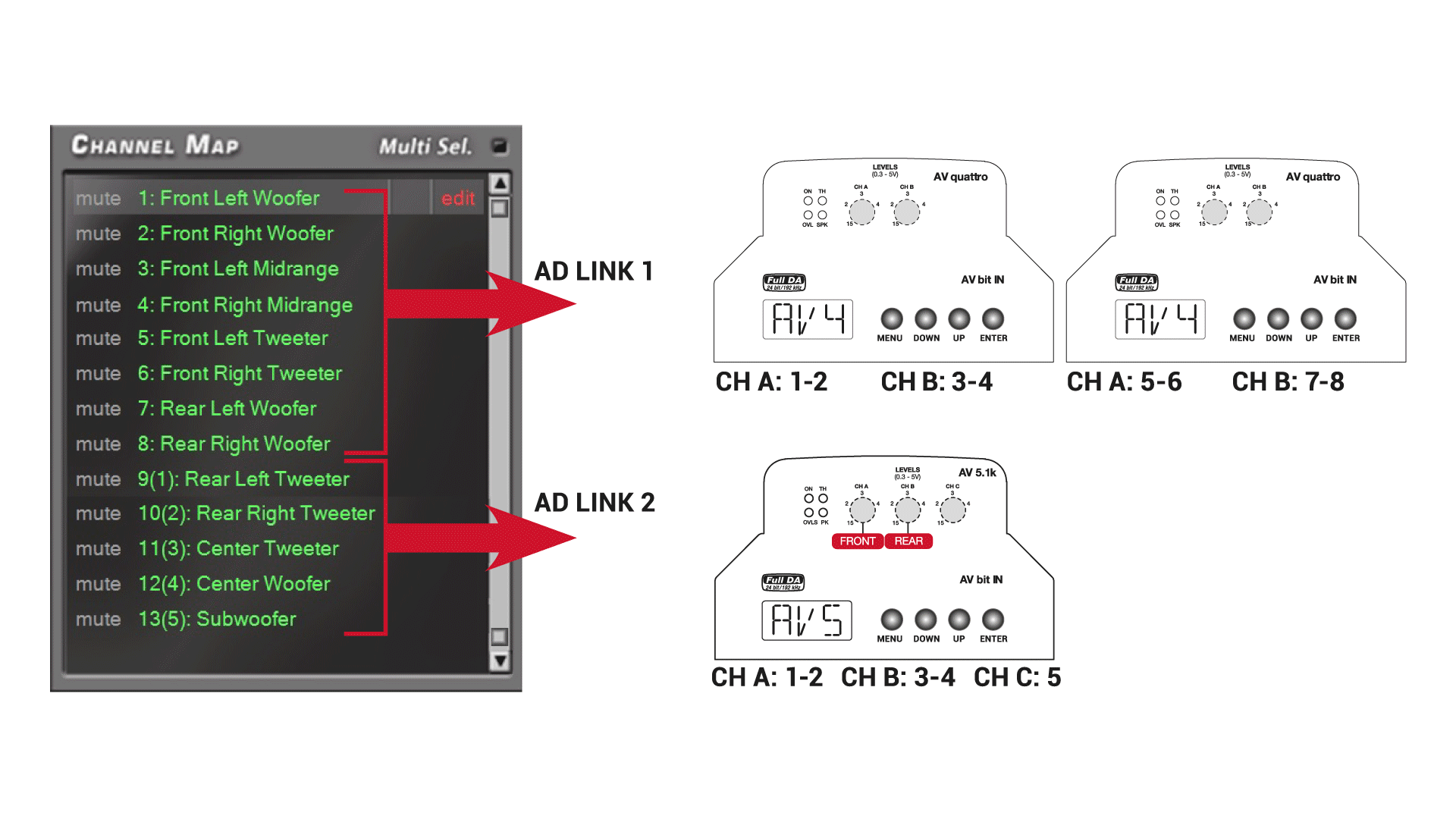

Remark: the output channels are 13 in total. The sum of the channels of the amplifiers connected must not exceed 13. To increase the number of channels, however, the same function (AMP ID) can be assigned to more than one amplifier.
WARNING: Output setups, with speakers named: Surround Left/Right, Front Super Tweeter Left/Right, Front MiD Bass Left/Right, Rear Midrange, are not compatible with AV bit In digital inputs. The same Setups are incompatible with AUTO SET systems performed with bit Tune.

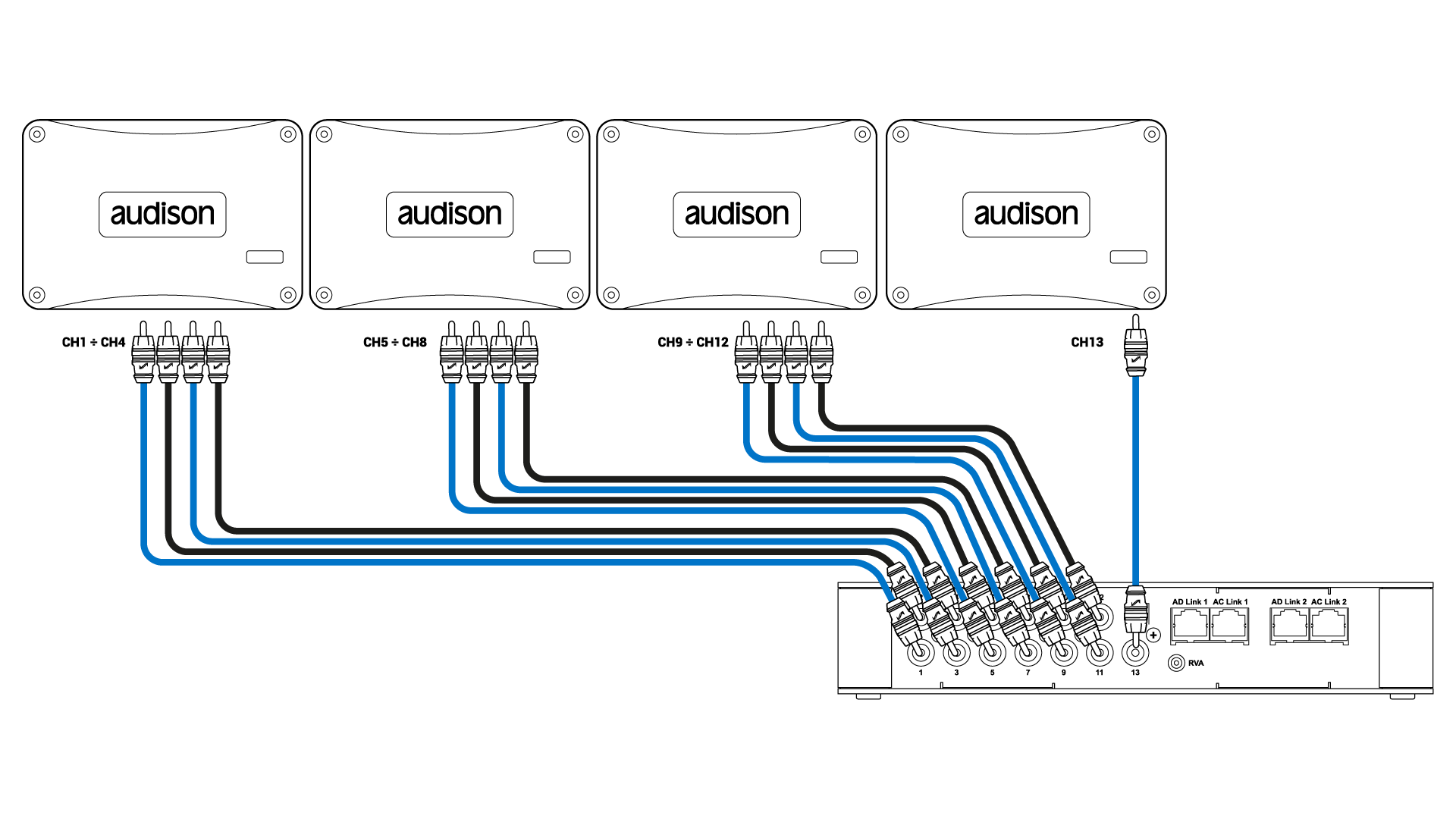

5.7.2. OUTPUT TO AN AMPLIFIERS SYSTEM WITH PRE INPUT

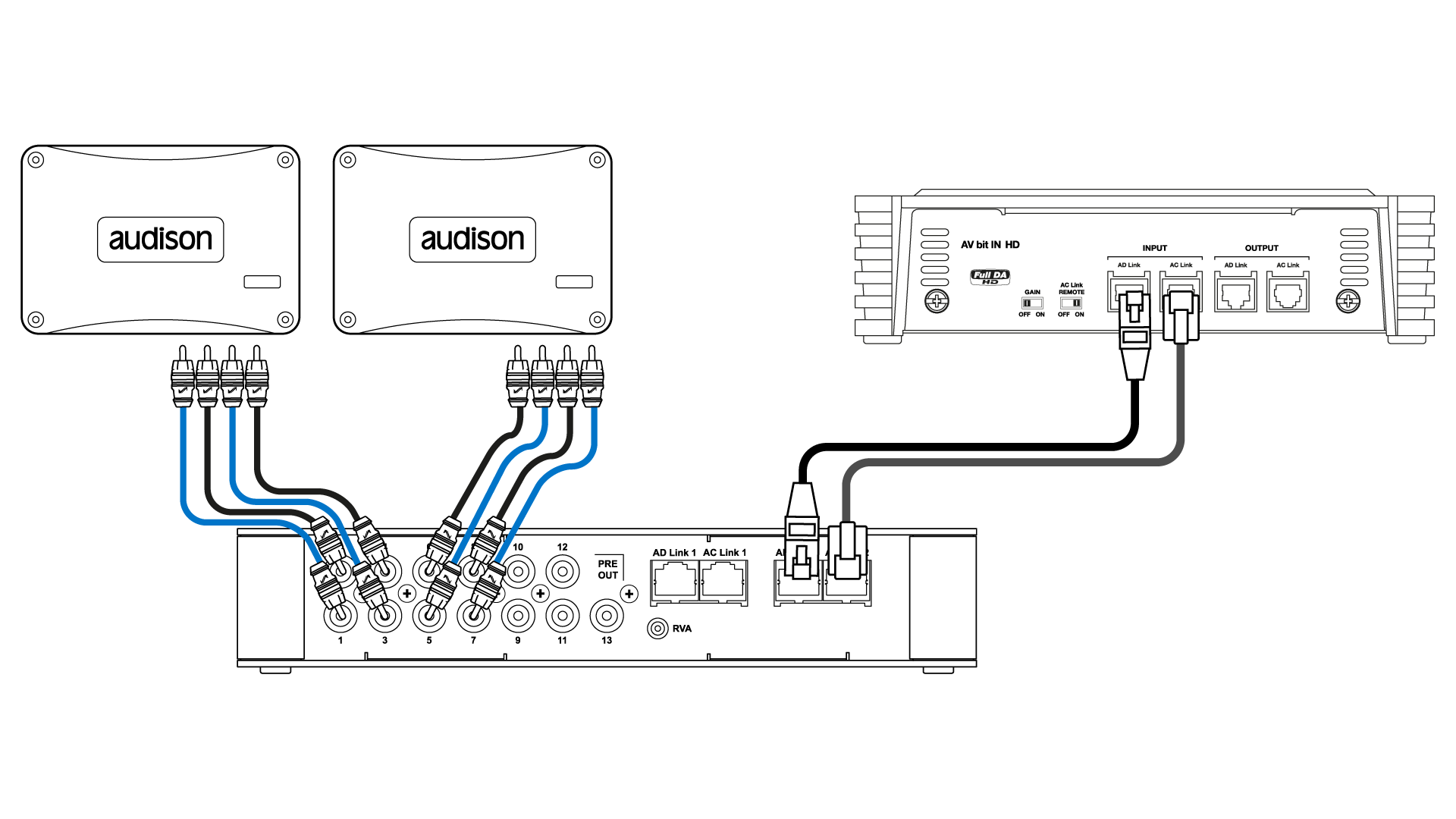

5.7.3. OUTPUT TO AN AMPLIFIERS SYSTEM PROVIDED WITH AD LINK AND AC LINK CONNECTIONS (THESIS TH) AND AMPLIFIERS PROVIDED WITH PRE INPUT (see section 7.2.2.12 - 7.2.3.11 - 7.2.4.6 - 8.3.3).
Remark: the output channels are 13 in total. The sum of the analog and digital outputs (AD Link) must not exceed the number of available channels.
